MAGIC

Bench drill for drilling bar holes

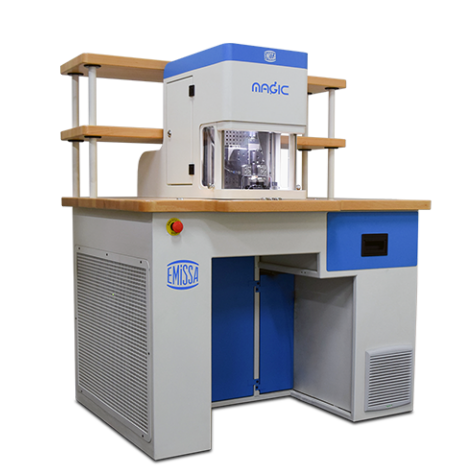

The MAGIC is a 3-axis benchtop machine designed for precise watchmaking operations: drilling spring bar holes between watch case lugs.

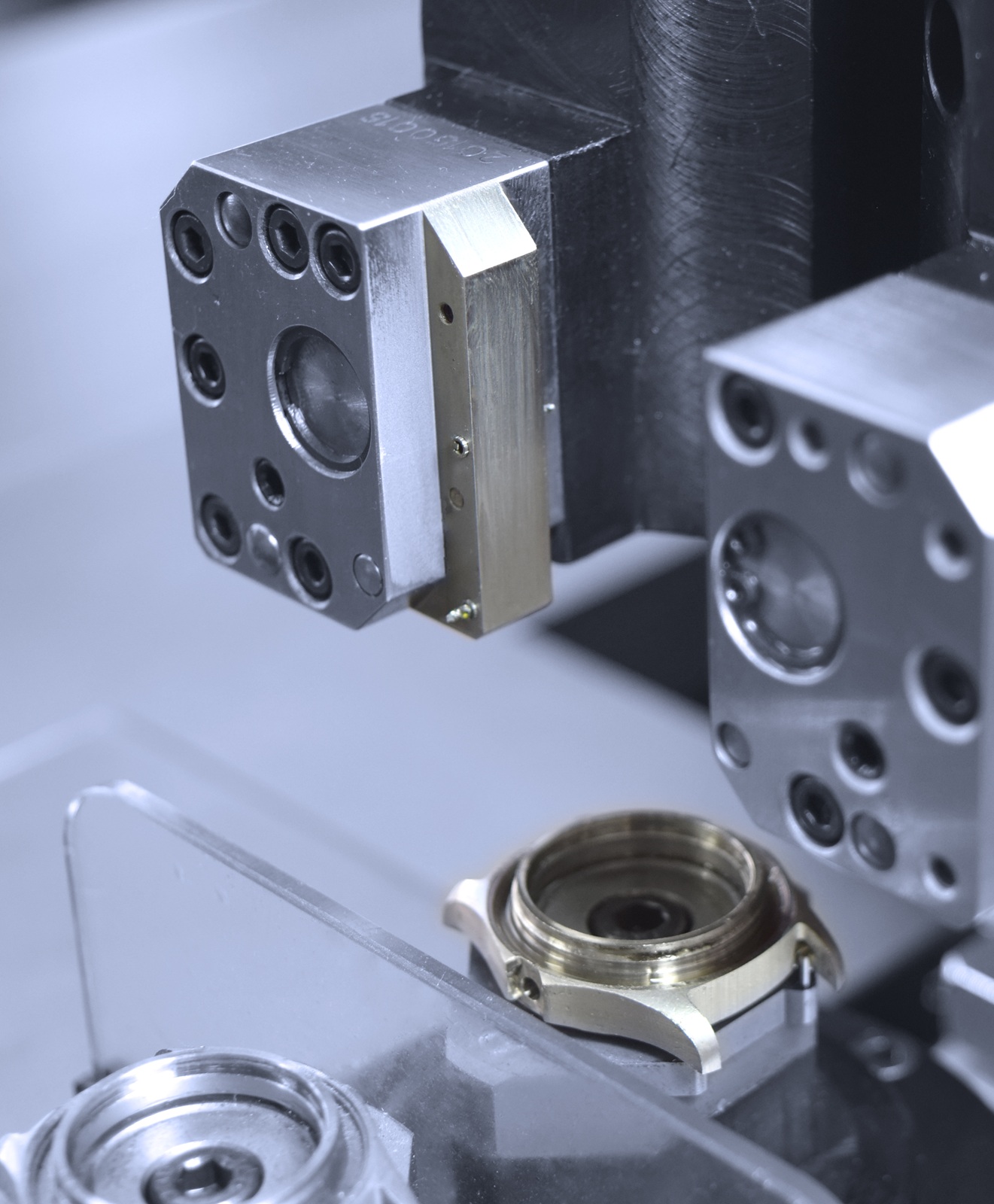

Thanks to its highly miniaturised PIBOMULTI drilling head, it allows two holes to be drilled simultaneously at right angles, while securing the loading thanks to a masked-time rotary table.

Simultaneous drilling PIBOMULTI Head Secure loading in masked time
Precision Watchmaking Drilling

A workbench machine designed for critical watch case operations



3-axis workbench machine for watchmaking

Simultaneous drilling of two clevis holes

Perpendicular drilling between horns

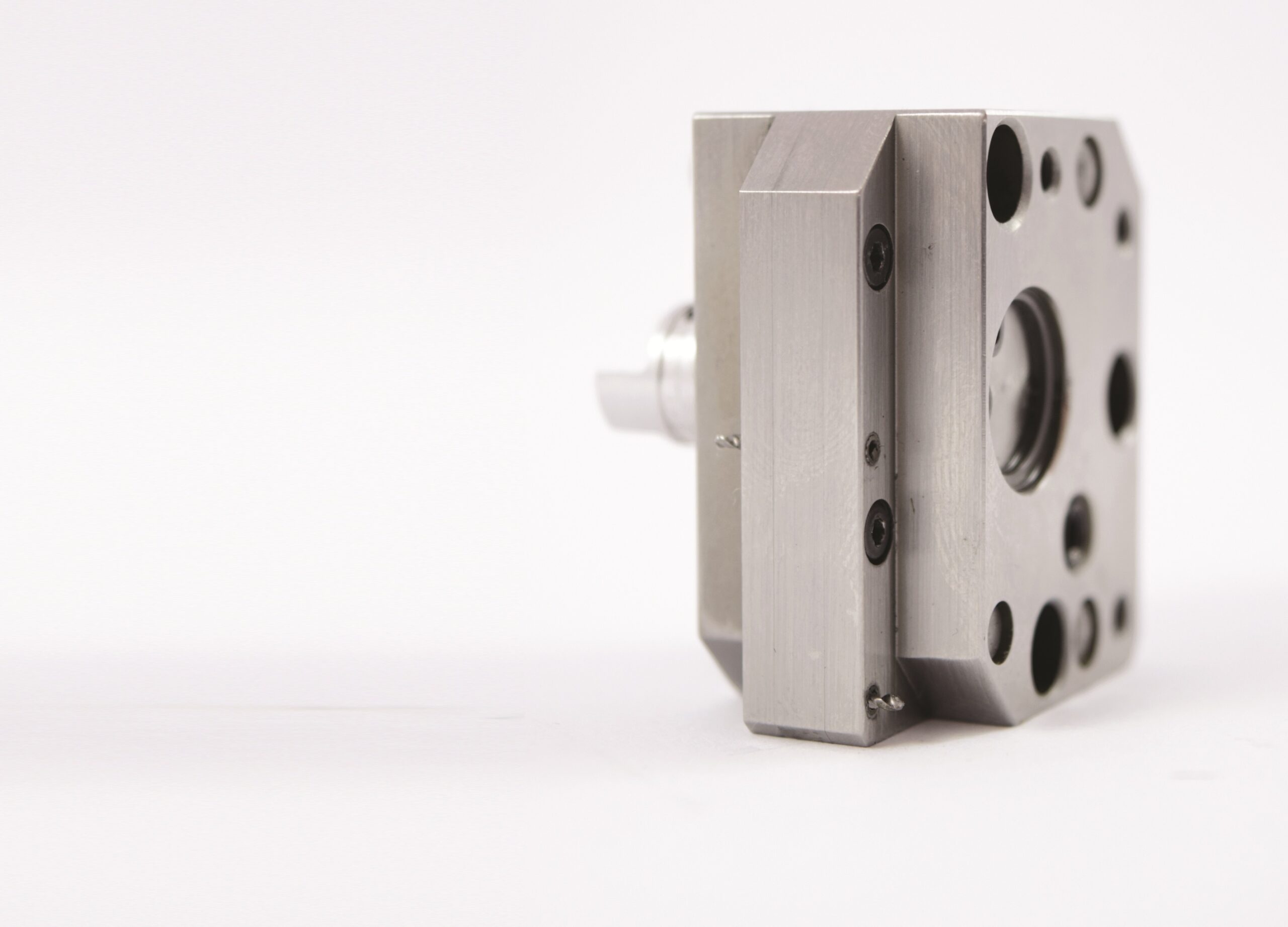

Highly miniaturised PIBOMULTI drilling head

Short tools for improving machining stability

Increased tool lifespan

Cycle time reduction

Possibility of angling with compressed tools

Hidden time loading by turntable

Securing access to the machining area with a double wall

Features and capabilities at a glance

Watchmaking

Technical specifications


Main features
Machine type – Workbench machine
Number of axes – 3 axes
Main application – Bar drilling
Procedure – Simultaneous drilling of two clevis holes
Drilling orientation – Perpendicular drilling between horns
Machining module – Miniaturised PIBOMULTI drilling head
Loading – Time-lag loading turntable
Operator safety – Double wall limiting access to the machining area during the cycle

Technical advantages of the PIBOMULTI module
  • Perpendicular drilling of bar holes
  • Short tools for improved machining stability
  • Increased tool lifespan
  • Possibility of creating a chamfer with compressed tools
  • Cycle time reduction
  • Adaptable to different types of machines to avoid rework
Dédicated catalog

Optimise the drilling of your bar holes

MAGIC offers a dedicated solution for bar hole drilling, providing a compact, precise, and secure option. Connect with EMISSA to validate the integration of this operation into your workshop.
