Machining centre

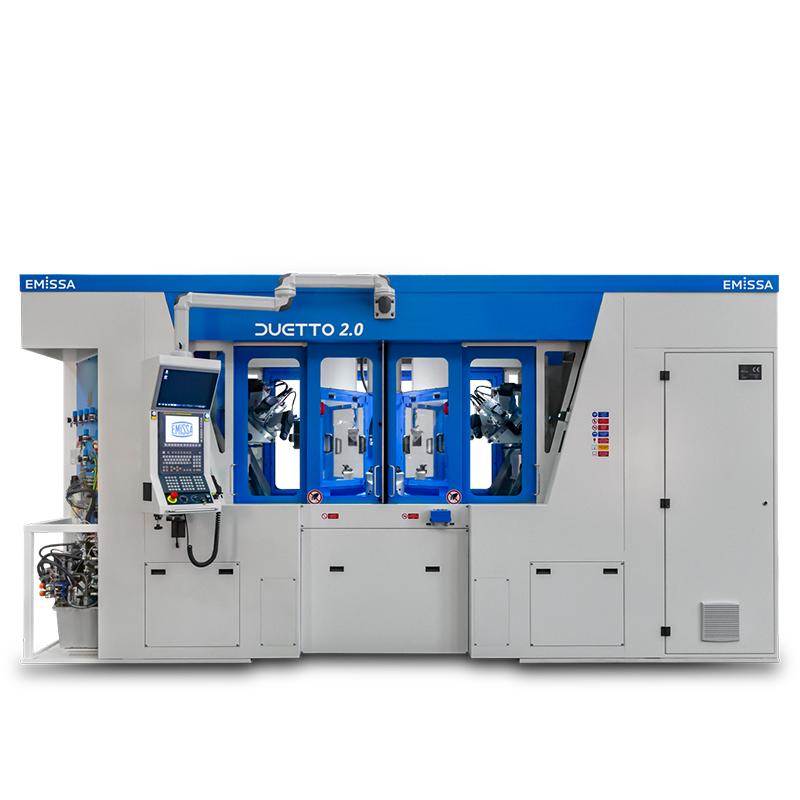

WinFlex PAL DUETTO

3-5 axis flexible machining centre for autonomous medium and large-scale production

The DUETTO is designed for high-production environments requiring speed, reliability, and repeatability.

Thanks to its two standalone machining modules positioned face-to-face, it allows identical or complementary parts to be machined simultaneously, while ensuring masked loading via a 4-pallet stacker.

Double machining unit Masked time production PIBOMULTI revolving heads
In-Person Production

Two machining modules to maximise production rate



Two autonomous machining modules

PIBOMULTI machining heads integrated into the machine

Simultaneous machining of identical or complementary parts

Up to 16 machining stations

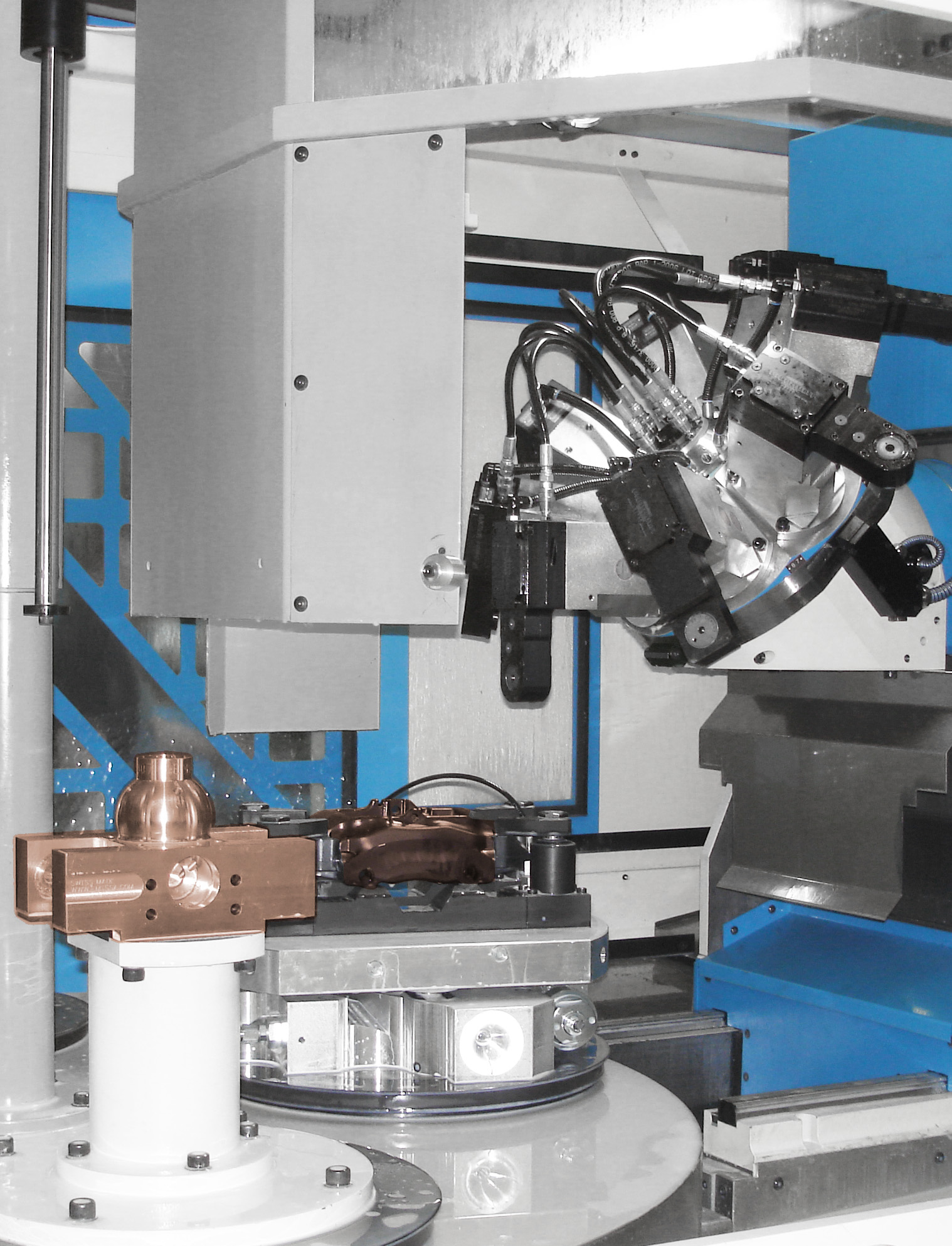

Revolver heads equipped with multi-spindle heads and bevel gears

4-pallet stacker

Masked time loading on both sides of the machine

Optional automatic robot loading possible

Automatic doors to secure access to the machining area

Features and capabilities at a glance

Automotive

Defence

Aero

Technical specifications


Main features
Course X / Y / Z mm 312 / 312 / 315
X / Y / Z Speed metres per minute 30
C-axis speed rpm 4,500
X / Y / Z acceleration m/s² 30
Spindle speed rpm 4,500 to 8,000
Fanuc – FANUC 31

Equipment and configurations
  • Two machining units facing each other
  • Two autonomous 4-axis machining modules
  • Simultaneous machining of 2 or 4 parts
  • Up to 16 machining stations
  • PIBOMULTI Machining Heads
  • Multi-spindle heads with right-angle drives possible
  • 4-pallet stacker
  • Masked time loading on both sides of the machine
  • Optional automatic robot loading available

Information implantation
Dimensions L x W x H mm 4500 x 3400 x 2620
European power supply – 400 V AC / 63 A / 50 Hz
Total machine weight tonnes 10
Dédicated catalog

Do you want to increase your production rates?

The DUETTO allows for the integration of several machining operations into an architecture designed for high production. Contact EMISSA to discuss a configuration suited to your parts, cycle times, and production constraints.
Discuss your needs
